For clarity and safety, the IStream object defined in the Delphi Visual Component Library (VCL) is a dynamic object that doesn’t have any methods, procedures, functions, events, listener etc… until these methods are defined in your code. The IStream Object will publish these methods correctly for external COM objects expecting an IStream interface.
For example you want to convert an OleVariant from an external COM to a memory stream, its kind of a mystery stream:
function getmemstreamfromIStream(avariant: variant): TMemorystream;
var instream: IStream; astream: TStream;
begin
instream:= IUnknown(avariant) as IStream;
astream:= TOleStream.Create(instream);
result:= astream as TMemorystream;
end;
That will not work because its an invalid class typecast exception, the solution will be a method called CopyFrom():
function getMemStreamfromIStream2(avariant: variant): TMemorystream;
var instream: IStream; ostream: TStream;
begin
instream:= IUnknown(avariant) as IStream;
ostream:= TOleStream.Create(instream);
result:= TMemorystream.Create;
try
result.CopyFrom(OStream, OStream.Size);
finally
OStream.Free;
end;
end;
TMemoryStream is a stream that stores its data in dynamic memory. Use TMemoryStream to store data in a dynamic memory buffer that is enhanced with file-like access capabilities. TMemoryStream provides the general I/O capabilities we use.
You could use most any TStream derived object within your own code implementation, including THandleStream or TFileStream. THandleStream provides access to the file handle variable that Windows API require for many core file read/write API calls.
That code works because of a new feature introduced in D2010, namely the ability to recover a reference to the object that implements an interface. Note though that if the IStream is implemented by something other than your Delphi code, then the cast will fail.

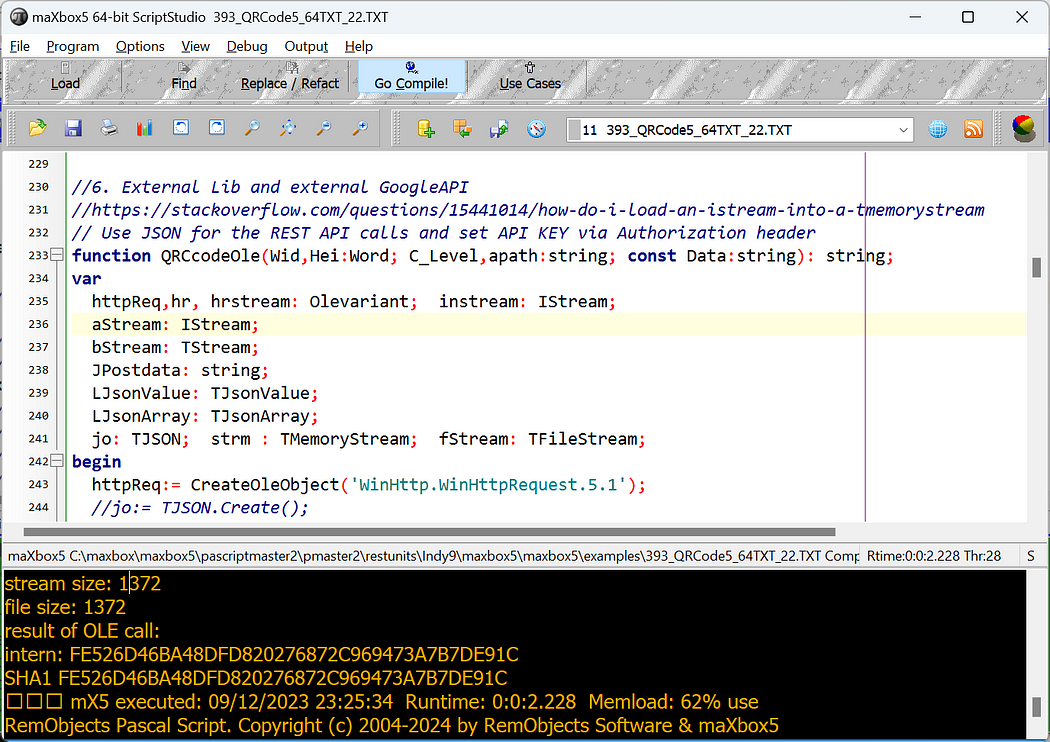

As another solution is the load of an IStream from an OLE response stream as unknown variant type to a well known TMemoryStream in order to save the response stream to a file (in our example a binary QR-code image file as a png graphic):
Const
URLGoogleQRCODE='https://chart.apis.google.com/chart?chs=%dx%d&cht=qr&chld=%s&chl=%s';
AFILENAME= 'mX5QRCode5.png';
QDATA= 'https://maxbox4.wordpress.com/';
Type TQrImage_ErrCorrLevel=(L,M,Q,H);
Function QRCcodeOle(Wid,Hei:Word; C_Level,apath:string; const Data:string): string;
var
httpReq,hr: Olevariant; instream: IStream;
jo: TJSON; strm :TMemoryStream;
begin
httpReq:= CreateOleObject('WinHttp.WinHttpRequest.5.1');
//jo:= TJSON.Create();
hr:= httpReq.Open('GET',
format(URLGoogleQRCODE,[Wid,Hei,C_Level,HTTPEncode(Data)]))
httpReq.setRequestheader('content-type','application/octet-stream');
//httpReq.setRequestheader('Authorization','Bearer '+ CHATGPT_APIKEY2);
if hr= S_OK then HttpReq.Send();
strm:= TMemoryStream.create;
If HttpReq.Status = 200 Then begin
try
strm:= getMemStreamfromIStream2(HttpReq.responsestream);
//getmemStreamfromIStream2file(hrstream, apath);
writeln('responsestream size: '+itoa(strm.size));
strm.savetoFile(apath)
openFile(apath);
except
writeln('EHTTPex: '+ExceptiontoString(exceptiontype, exceptionparam));
finally
strm.free;
httpreq:= unassigned;
end;
end;
end;
//https://stackoverflow.com/questions/15441014/how-do-i-load-an-istream-into-a-tmemorystream
And the call of the function, but it doesn’t returns anything for the moment, cause we store the result direct in a file (better would be to get back a boolean of success or fail)://6. Call of the OLE WinHttp Class
//6. Call of the OLE WinHttp Class
writeln('back of OLE call: '+
QRCcodeOle(150,150,'Q',ExePath+'\examples\'+AFILENAME, QDATA));
writeln('SHA1 '+Sha1(ExePath+'examples\'+AFILENAME)); //}
writeln(‘back of OLE call: ‘+
QRCcodeOle(150,150,’Q’,ExePath+’\examples\’+AFILENAME, QDATA));
writeln(‘SHA1 ‘+Sha1(ExePath+’examples\’+AFILENAME)); //}
Another option is to write a TStream-derived class that accesses the IStream internally (similar to how the RTL’s TStreamAdapter class wraps a TStream so it can be passed around as an IStream).
Using the Google Chart Tools / Image Charts (aka Chart API) you can easily generate QR codes, this kind of images are a special type of two-dimensional barcodes. They are also known as hardlinks or physical world hyperlinks.
I was probably not aware of TOleStream at the time I wrote this answer. Looking at TOleStream now, I notice that it does not support 64-bit streams. This code does. Other than that, this code is almost identical to the code that TOleStream uses, with one only exception being that this code’s implementation of the Size property getter is more optimized than TOleStream‘s implementation is, and this code implements the Size property setter whereas TOleStream does not.
So we can combine the invoke call from HttpReq.responsestream to get a file in one function:
function getmemStreamfromIStream2File(avariant: variant;
apath: string): Tmemorystream;
var instream: IStream; ostream: TStream;
begin
instream:= IUnknown(avariant) as IStream;
ostream:= TOleStream.Create(instream);
result:= Tmemorystream.Create;
try
result.CopyFrom(OStream, OStream.Size);
result.SaveToFile(apath)
finally
OStream.Free;
end;
end;
Conclusion: There are probably better ways, but I would create a TOleStream, which is designed as an IStream wrapper; then you can use the CopyFrom() method of your MemoryStream to load and save the data!
5 City Cycle: Geneva-Bern-Basel-Zürich-St. Gallen
You can expect the journey from Bern Hbf to London by train to take around 10 hours 34 minutes. If you want to get there as quickly as possible, it can take as little as 7 hours 54 minutes on the fastest services. You’ll usually find around 19 trains per day running on this route, which spans 462 miles (744 km). You’ll have to make 2 changes along the way on your journey to London. Eurostar, TGV or Thalys are the main rail operators on this route, all of which offer modern trains with plenty of space for luggage and comfortable seating.

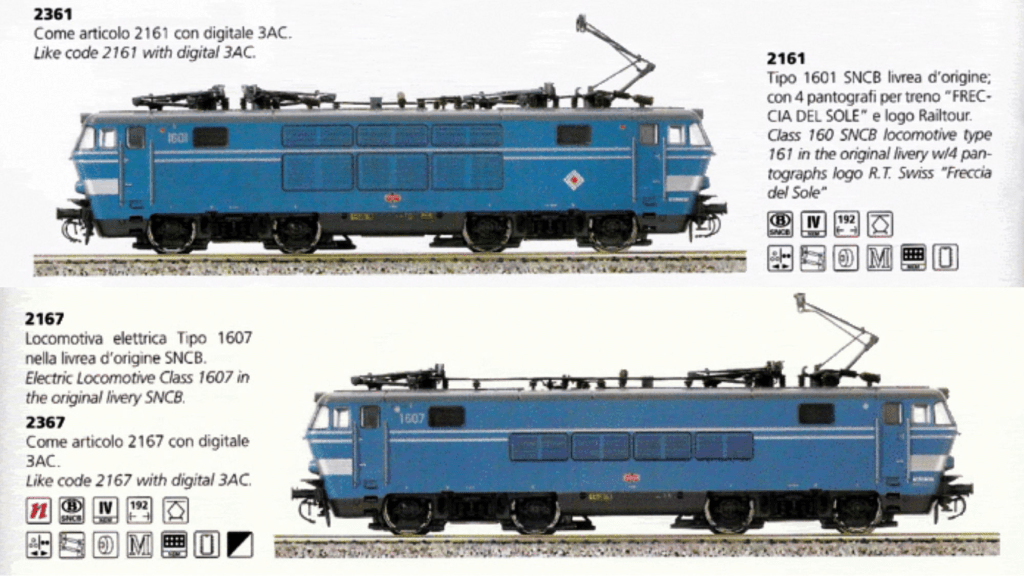

La 1601 “Freccia del Sole” est intéressante, car elle a fait l’objet d’essais sur le BLS avec la 1602. Pour cela, elle a reçu un 4e pantographe lui permettant de rouler en Suisse. Avec logo R.T. Suisse Railtour.
D’après Wikipédia:
La série 16 est une série de huit locomotives électriques polytension commandée en 1966 par la SNCB, afin de tracter les convois sur la ligne vers Cologne nouvellement électrifiée, trois ans après celle vers Paris. En mars 2010, elles furent définitivement mises hors service.

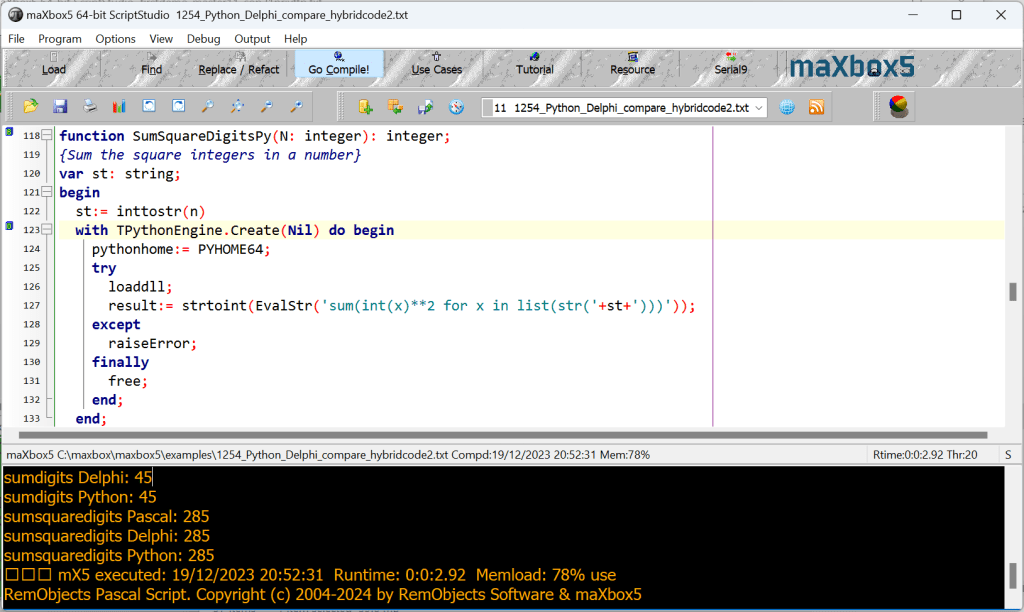

function SumSquareDigitsPy(n: integer): integer;
{Sum the square integers in a number}
var st: string;
begin
st:= inttostr(n)
with TPythonEngine.Create(Nil) do begin
pythonhome:= PYHOME64;
try
loaddll;
result:= strtoint(EvalStr('sum(int(x)**2 for x in list(str('+st+')))'));
except
raiseError;
finally
free;
end;
end;
end;
function SumSquaredDigits_(n: integer): integer;
{Sum the squares of the digits in a number}
var t: integer;
begin
Result:=0;
repeat
begin
t:=n mod 10; n:=n div 10;
Result:=Result+t*t;
end
until n<1;
end;
And the Pythonic way:
digstr:= '0123456789';
sumi:= 0;
for it:= 1 to length(digstr) do sumi:=
sumi+round(pow(atoi(digstr[it]),2));
writeln(itoa(sumi));
>>> 285
Mime Base64Decode Stream
If it returns a random, base64-encoded image in JPEG format you have two options:
Accept (required) – header indicating the content type to accept in the result. Must be set to the following:image/jpg.
function GEO_to_text_API2_randimage(AURL, url_name, aApikey: string): string;
var httpq: THttpConnectionWinInet;
rets, rets2: TMemoryStream;
heads: TStrings; iht: IHttpConnection; //losthost:THTTPConnectionLostEvent;
begin
httpq:= THttpConnectionWinInet.Create(true);
rets:= TMemoryStream.create;
heads:= TStringlist.create;
try
heads.add('X-Api-Key='+aAPIkey);
heads.add('Accept=image/jpg');
iht:= httpq.setHeaders(heads);
httpq.Get(Format(AURL,[urlencode(url_name)]), rets);
if httpq.getresponsecode=200 Then begin
rets.Position:= 0;
rets.savetofile((exepath+'randimage.jpg'));
openfile(exepath+'randimage.jpg');
Or you encode (change) the raw get stream with the procedure ALMimeBase64decodeStream();
function GEO_to_text_API2_randimage(AURL, url_name, aApikey: string): string;
var httpq: THttpConnectionWinInet;
rets, rets2: TMemoryStream;
heads: TStrings; iht: IHttpConnection; //losthost:THTTPConnectionLostEvent;
begin
httpq:= THttpConnectionWinInet.Create(true);
rets:= TMemoryStream.create;
rets2:= TMemoryStream.create;
heads:= TStringlist.create;
try
heads.add('X-Api-Key='+aAPIkey);
//heads.add('Accept=image/jpg');
iht:= httpq.setHeaders(heads);
httpq.Get(Format(AURL,[urlencode(url_name)]), rets);
if httpq.getresponsecode=200 Then begin
writeln('size of '+itoa(rets.size));
rets.Position:= 0;
ALMimeBase64decodeStream(rets, rets2)
rets2.savetofile((exepath+'randimage.jpg'));
openfile(exepath+'randimage.jpg');
end else result:='Failed:'+itoa(Httpq.getresponsecode)+Httpq.GetResponseHeader('message');
except
writeln('EWI_HTTP: '+ExceptiontoString(exceptiontype,exceptionparam));
finally
httpq:= Nil;
heads.Free;
rets.Free;
rets2.Free;
end;
end; //}
Base64 strings are normally padded with trailing “=” signs to make sure their length is a multiple of 4.
Some decoders will try to correct for the missing padding chars while others will not. See the StackOverflow question “Remove trailing “=” when base64 encoding“
The Random Image API generates random images for all your placeholder and design needs. It supports custom sizes as well as custom image categories.
https://api-ninjas.com/api/randomimage
MemoryStream to String
StreamToString3(ms) and other inbuilts missing a tag so an explicit method works as workaround:
Function TryMemoryStreamToString(const MS: TMemoryStream; var s: string): Boolean;
begin
Result:= False; if(MS=Nil) then Exit;
try
SetLength(s, MS.Size - MS.Position);
writeln('debug size: '+itoa(length(s)));
MS.Read(s, Length(s));
Result:= True;
except
Result:= False;
end;
end;
And the other way round:
Function TryStringToMemoryStream(const s: string; var MS: TMemoryStream):Boolean;
begin
Result:= False; if(MS=Nil) then Exit;
try
MS.Write(s, Length(s));
Result:= True;
except
Result:= False;
end;
end;
